Product Description

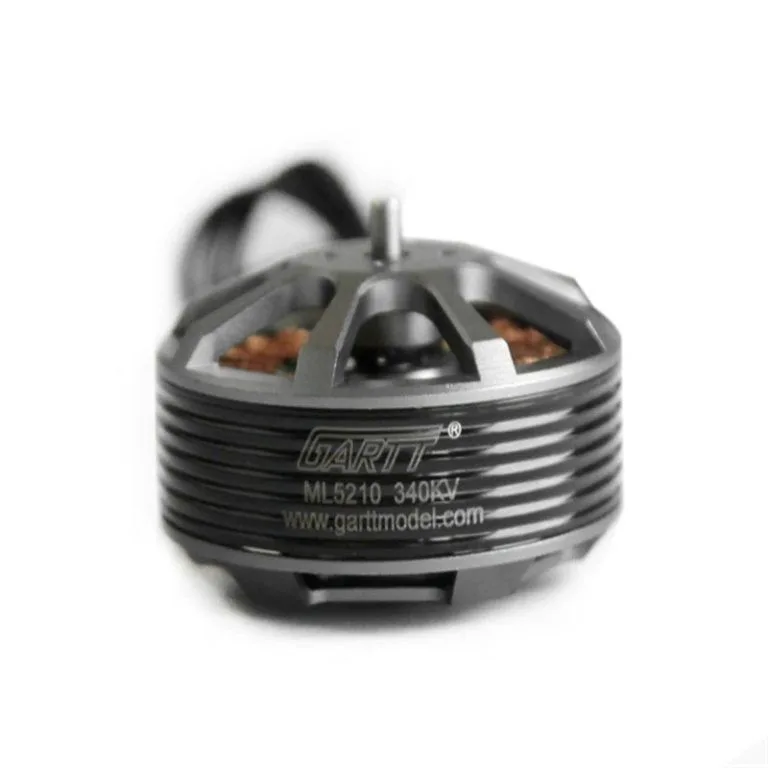

5010 360KV Brushless Motor

5010 360KV Motor

These are really great outrunners. We’ve tested this line and they work extremely well. Achieve higher efficiency with up to 16″ propellers and up to 22.2V.

Motor 5110 360KV brushless motor, designed for either 14×5.5″ propellers at 6-cells or 22.2V at 25amps(approx.) or larger propellers when lower voltage batteries are used. At 11.1V, larger or more efficient propellers can be used (only recommended for lighter efficiency configurations).

Features:

• Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.
• Motor have rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.
• Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
• 4. 140 C (356 F) Temperature rated wire is used for winding the motors to minimize the risk of burning up the motor.
• Quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.
• Quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.

Specifications:

• Motor size: 50*10mm
• Shaft size: 4mm
• Weight: about 116.2g
• KV(rpm/v): 360
• Battery: 2-6Li-Po
• ESC: 20-40A

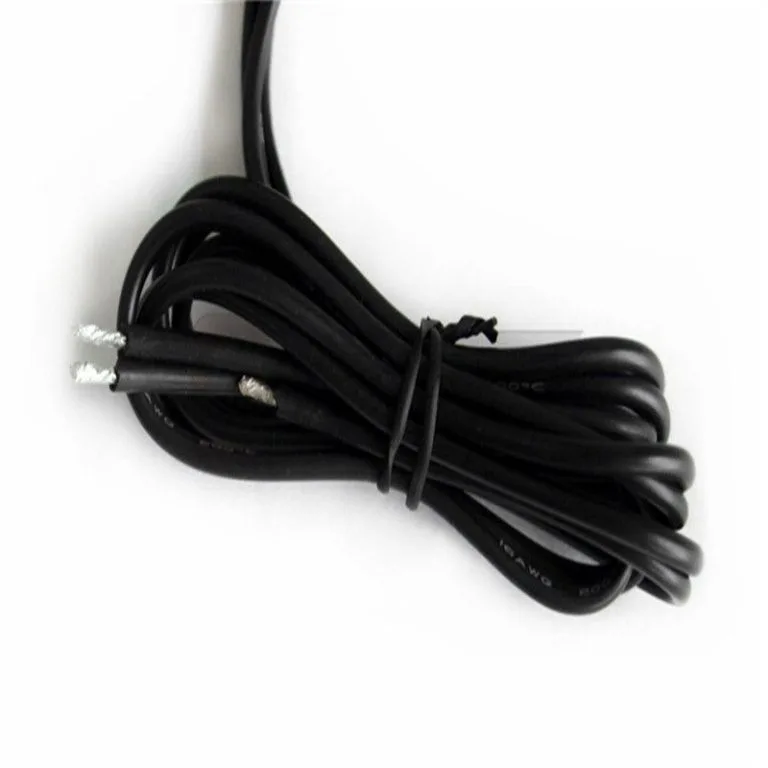

• Cable 40cm

Best working with props of 14-16″

Package includes:

4pcs 5010 360kv Motor with Prop Adapter and Mounting Hardware

Caution:

• Storage Area temperature: Don’t put it beside the high temperature condition or the temperature is over 70 ° C.
• Keep away from kids that they can not get it.
• Flammable: Don’t throw it into fire.
• Don’t throw it into water.
• For safety, we recommend that you use the Motor to fly drones with Propeller.

FAQ

How to use Motor in Drones, Planes or RC Cars?

Answer: Motor come with screw that need ESC and Propeller.
