Product Description

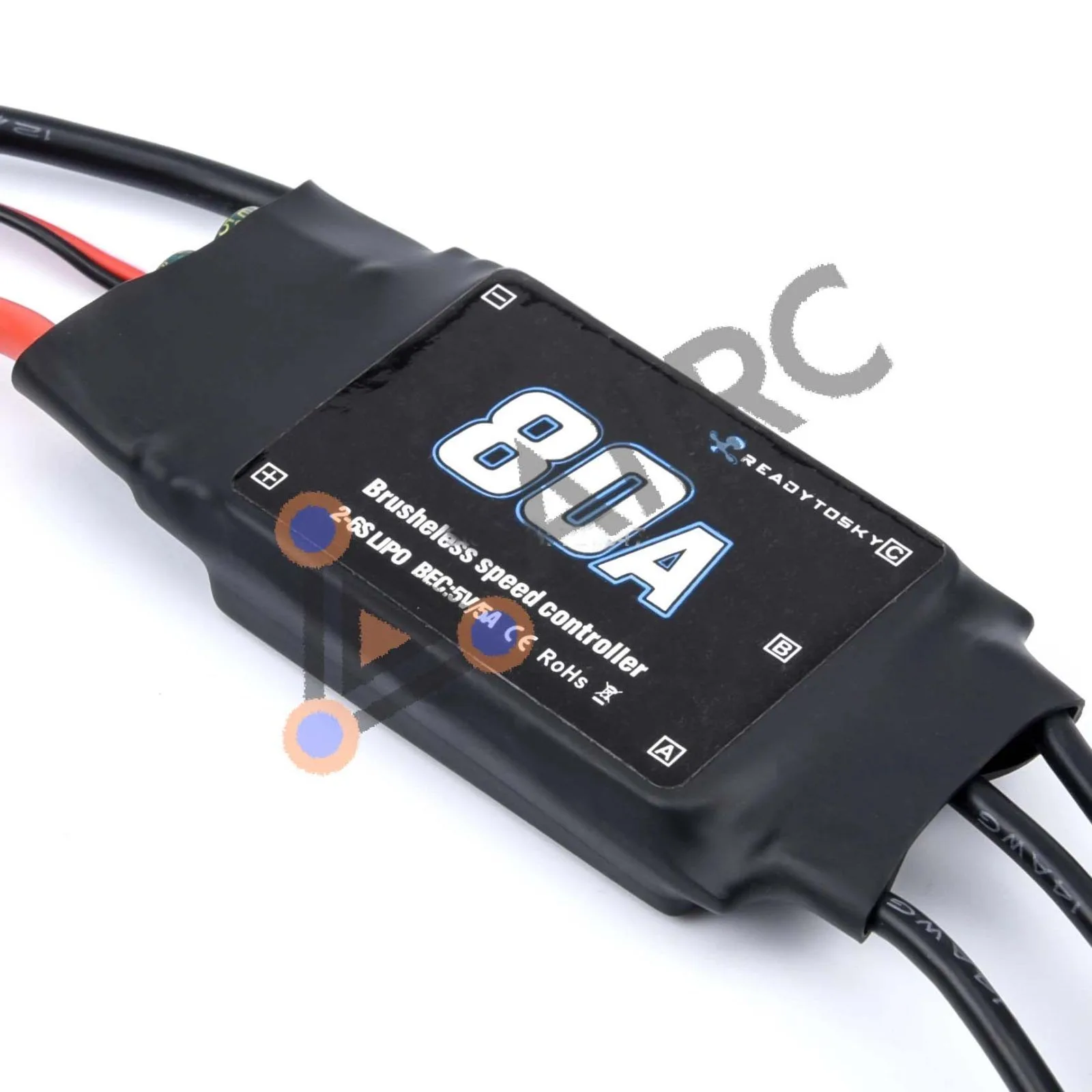

80A 2-6S ESC Brushless ESC Readytosky

80A 2-6S ESC Brushless

• Brushless ESC : Output Con. Current 80A ; In. Current 100A; Input : 2-6S.
• BEC ; 5V@5A ( Built-in switch mode BEC Regulators ).
• Throttle range calibrated function: to adapt the throttle differences between different stroke, improve the linearity of throttle response.
• Comprehensive protection features: under voltage protection, Overvoltage Protection, Overheat protection, remote signal loss protection.
• Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury.

Readytosky 80A ESC 2-6S Brushless ESC Speed Controller for RC FPV Airplane Helicopter Drone
Make the throttle max/highest before connect to battery. Then you will hear 2 beep. 3 beep. 4 beep by cycle.

• 1.Make the throttle from max to min fast when 2 beep,it is setting the Throttle Range.
• 2.Make the throttle from max to min fast when 3 beep,it is setting the ON/OFF of the Synchronous Rectifying.
• 3.Make the throttle from max to min fast when 4 beep,it is setting the ON/OFF of the Brake Mode.
• 3.1 Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury;
• 3.2 Throttle range calibrated function: to adapt the throttle differences between different stroke, improve the linearity of throttle response

Caution:

• Storage Area temperature: Don’t put it beside the high temperature condition or the temperature is over 70 ° C.
• Keep away from kids that they can not get it.
• Flammable: Don’t throw it into fire.
• Don’t throw it into water.
• For safety, we recommend that you use the Motor to fly drones with Propeller.

FAQ

How to use Motor in Drones, Planes or RC Cars?

Answer: Motor come with screw that need ESC and Propeller.
