Description

Specification: EFT X6120

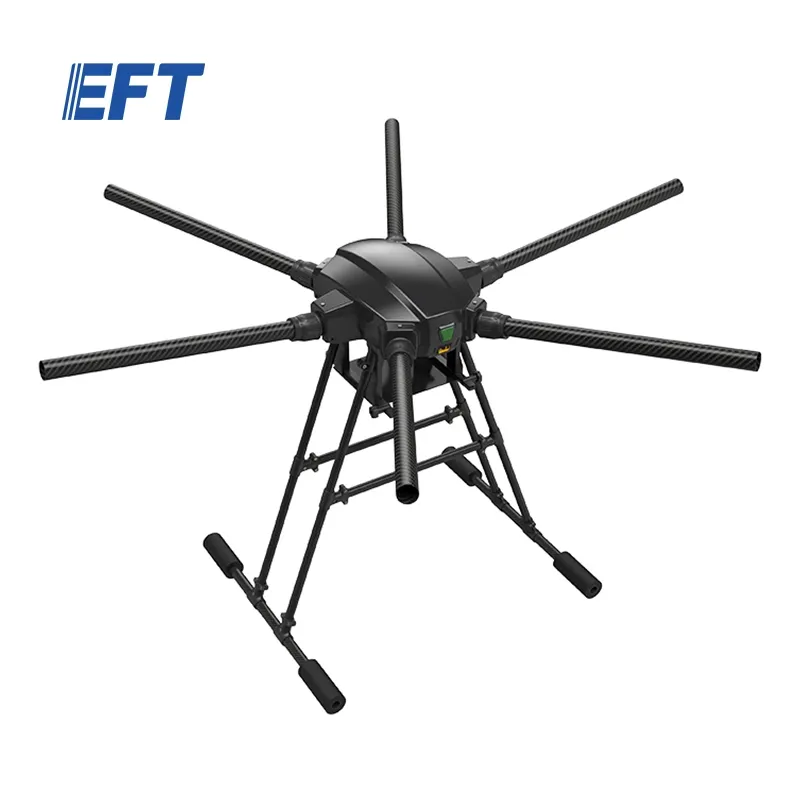

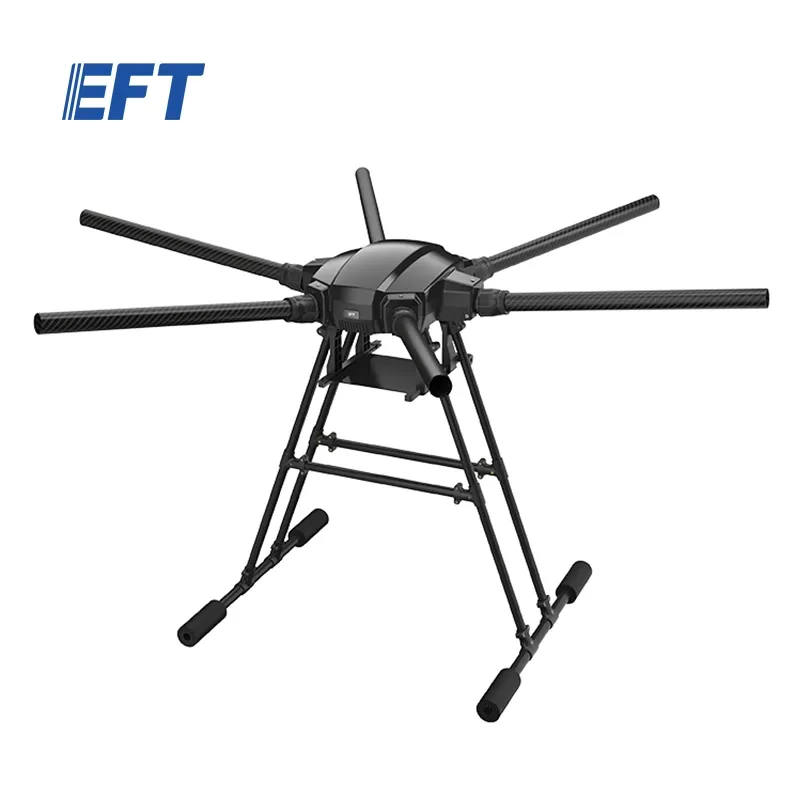

Name: EFT X6120 Light Weight Hexacopter Long Flight Time - Allrc
Price: 280000 PKR
Availability: InStock

Item Brand: EFT
Digonatal wheelbase: 1290mm
Frame weight: 3.18kg
Max. take-off weight: 18kg
Effective Payload: 4-6kg
No-load flight Time: about 40 minutes (12s 16000mah battery)
about 50 minutes (12S 22000mah battery)
5kg Payload flight time: about 20 minutes (12s 16000mah battery)
about 30 minutes (12S 22000mah battery)
For the test data, the factory use the X6 power system, 2 pieces of Tattu 6s batteries in series.

EFT X6120 Light Weight Hexacopter Features

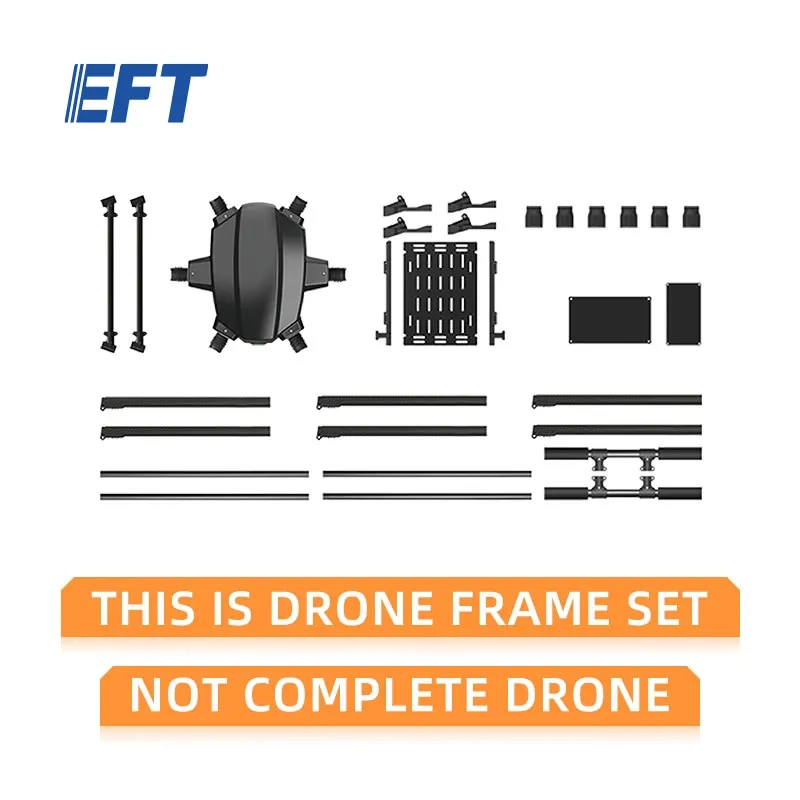

1. Modular Design
The main body of the X6120 drone adopts modular design. The fuselage frame is integrally formed, with a simplified structure. Easy to assemble and maintain.
2. Seperate Arm Disassembly
The arm of the X6120 adopts a serparate disassembly desin and ingeniouly designed breakpoints to reduce damage to the parts of crash the drone and reduce maintainance costs.

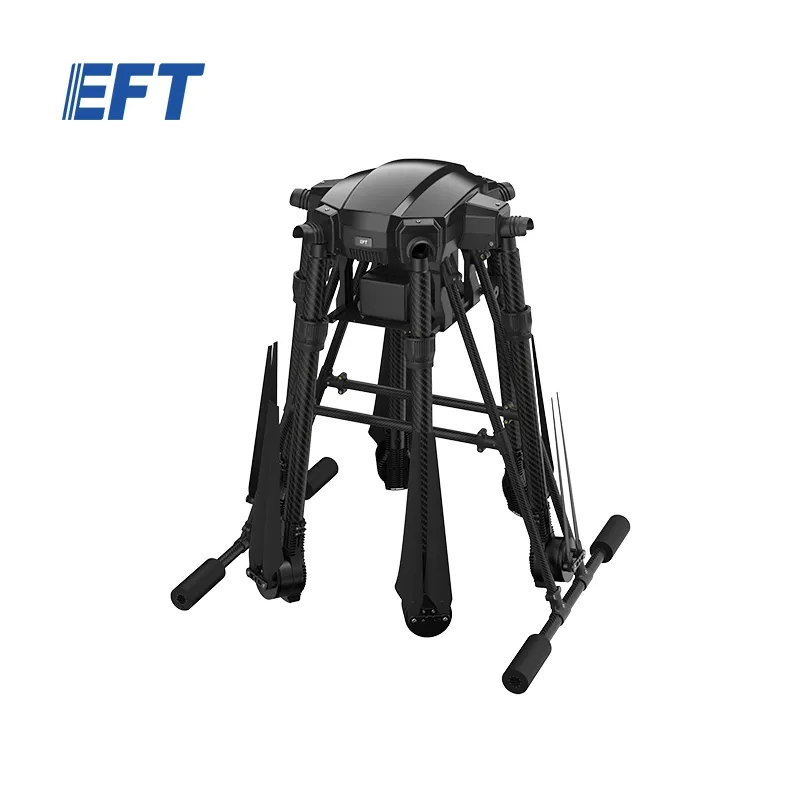

3. Umbrella Folding
The X6120 frame adopts classic umbrella folding method, which minimizes the size of the drone after folding, more convenient to storage or carry out.
4. Quick Release Battery Track
The X6120 drone battery track cooperates with the spring posioning knob to realize the tool-free replacement of the battery compartment, more convenient to use.
5. Full Waterproof Body
The design of the whole drone is dustproof and waterproof, and the protection grade is IP65, which can fly in the rain.
6. Expanded Mounting Platform
The X6120 is capable of different mounting platforms, such as the gimbal, Pod, magaphone, releasing devices and etc.

EFT X6120 Industrial Drone Introducing

EFT X6120 Industrial Drone Installation Guide

EFT X6120 Industrial Drone - 6 Axis 6KG Payload 30Minutes Light Weight Hexacopter for Training, Inspection,Searching

EFT X6120 light-load flight platform 7 modular integrated fuselage The main body of the fuselage adopts a modular design, and the fuselage frame is integrated, with a simple structure and easy assembly.

separate arm disassembly
- description: the arm adopts a separate disassembly design and ingeniously designed breakpoints to reduce damage to the parts of the bomber and reduce maintenance costs
umbrella folding design
- description: the whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage

EFT X6120 Industrial Drone Release Battery Guaid

full waterproof body the design of the whole machine is dustproof and waterproof, and the protection grade is ip65, which can fly normally in the rain.
quick release battery guide the battery guide rail cooperates with the spring positioning knob to realize the tool-free replacement of the battery compartment, making the battery installation and replacement more convenient and quick.

EFT X6120 Drone equipped with gimbal, pod, megaphone, throwing device, etc. mounting scheme example

scalable mounting platform the expandable mounting platform can be adapted to equipment for different industry uses, for example, equipped with gimbal, pod, megaphone, throwing device, etc. mounting scheme example
