Description

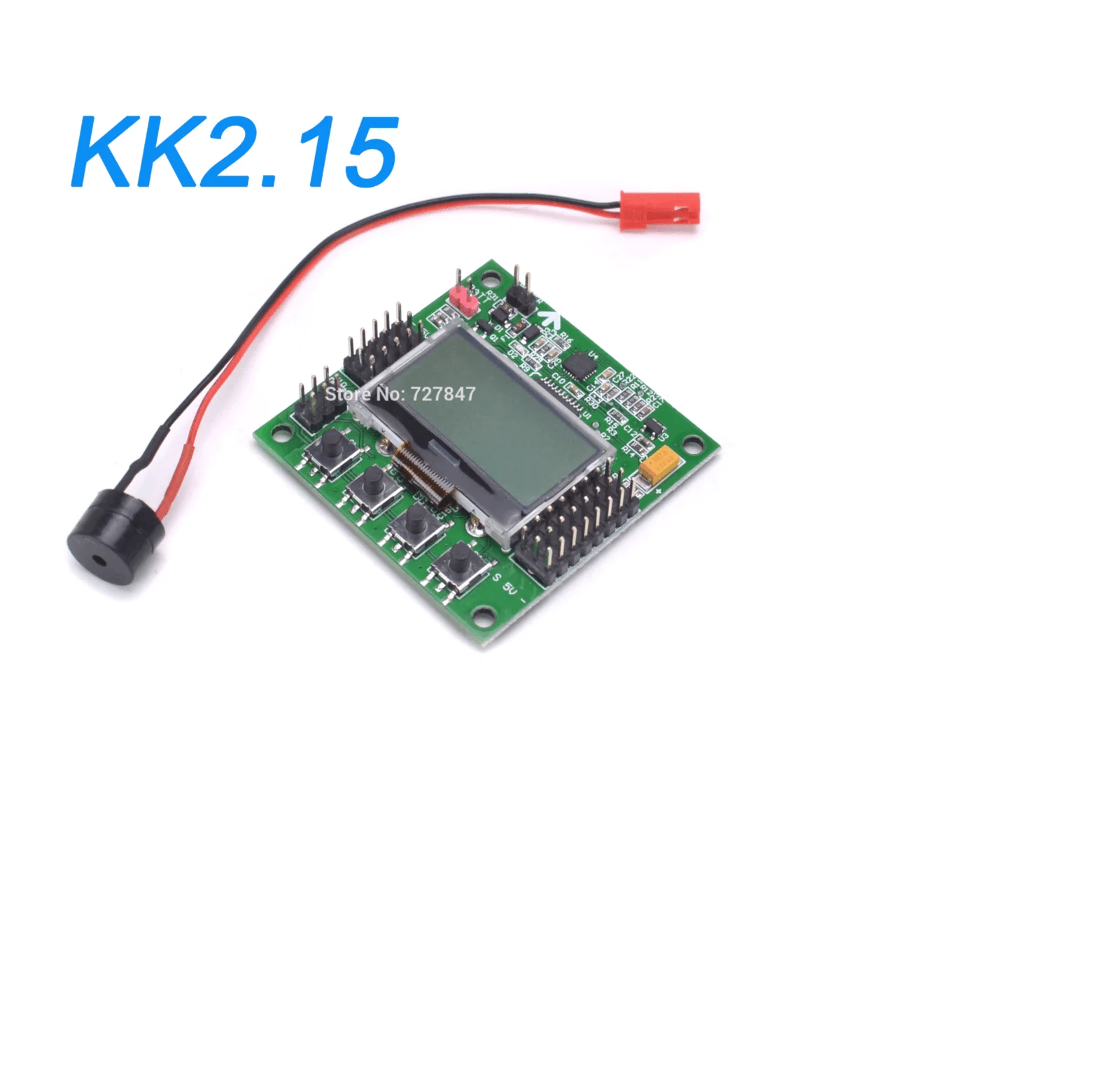

KK2.1.5 LCD Flight Control Board for RC Airplane FPV Racing Drone
KK2.1.5 LCD Flight Control
- The KK2.1.5 is next big evolution of the first generation KK flight control boards.
- The KK2.1.5 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts.
- A host of multi-rotor craft types are pre-installed, simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and you’re ready to go! All of which is done with easy to follow on screen prompts!
- The voltage sense line has been updated for better accuracy.
- The board is clearly labeled and the voltage sense line color has been changed to red for easy identification, making installation and connections a snap.
Description:
Item number: KK2.1.5
- Size: 51mm x 51mm x 12mm
- Weight: 21 gram (Inc Piezo buzzer)
- IC: Atmega
- Gyro/Acc: InvenSense Inc.
- Auto-level: Yes
- Input Voltage: 4.8-6.0V
- AVR interface: standard 6 pin
- Signal from Receiver: 1520us (5 channels)
- Signal to ESC: 1520us
Firmware Version: 1.17S1 PRO OR OpenAero VTOL (Pre-installed firmware)
Applicable models:
- Dualcopter
- Tricopter
- Y6
- Quadcopter +
- Quadcopter X
- Hexcopter +
- Hexcopter X
- Octocopter +
- Octocopter X
- X8 +
- X8 X
- H8
- H6
- V8
- V6
- Aero 1S Aileron
- Aero 2S Aileron
- Flying Wing
- Singlecopter 2M 2S
- Singlecopter 1M 4S
The Mixer Editor allows you to adjust where and how much signal the motors receive from stick input and sensors. This allows you to create any configuration possible with up to 8 motors or servos.
Features:
- * The KK2.1.5 Multi-Rotor controller is a flight control board for multi-rotor aircraft (Tricopters, Quadcopters, Hexcopters etc).
- These signals instruct the ESCs to make fine adjustments to the motors rotational speed which in turn stabilizes your multi-rotor craft.
. Flight information has been processed the IC will send varying signals to the ESCs. Flight Controller in turn adjust the rotational speed of each motor to induce controlled flight (up, down, backwards, forwards, left, right, yaw).
Package included:
1x KK2.1.5 LCD Flight controller
Caution:
- Storage Area temperature: Don’t put it beside the high temperature condition or the temperature is over 70 ° C.
- Charging Caution: Don’t over-charge, or over-discharge batteries
- Keep away from kids that they can not get it.
- Flammable: Don’t throw it into fire.
- Don’t throw it into water.
- For safety, we recommend that you use the official material and accessories.
