Product Description

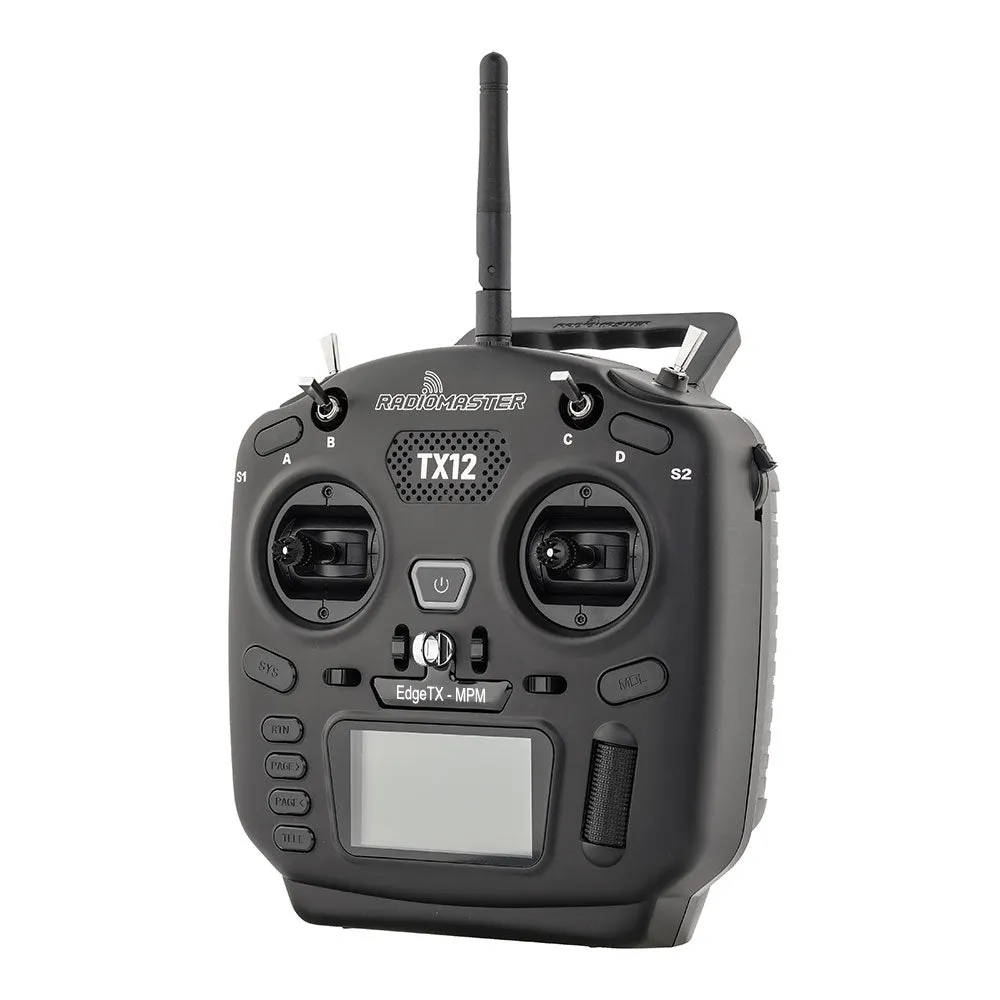

Introducing the RadioMaster TX12 MKII 2.4GHz 16CH Radio Transmitter with Hall Gimbals and Express Long Range System (ELRS) internal module. This advanced transmitter is designed to provide pilots with precise control and reliable performance, featuring a range of upgrades and enhancements for an exceptional flying experience.

**Features:**

1. **Express Long Range System (ELRS)**: The TX12 MKII comes equipped with an internal ExpressLRS module, offering extended range and reliable communication for long-distance flights.

2. **Adjustable Hall Gimbals**: The precision hall-effect gimbals are adjustable without the need for assembly, providing pilots with customizable control that suits their preferences.

3. **EdgeTX + OpenTX**: Supports EdgeTX operating system, which is installed from the factory. Compatible with OpenTX, giving pilots access to a wide range of features and customization options.

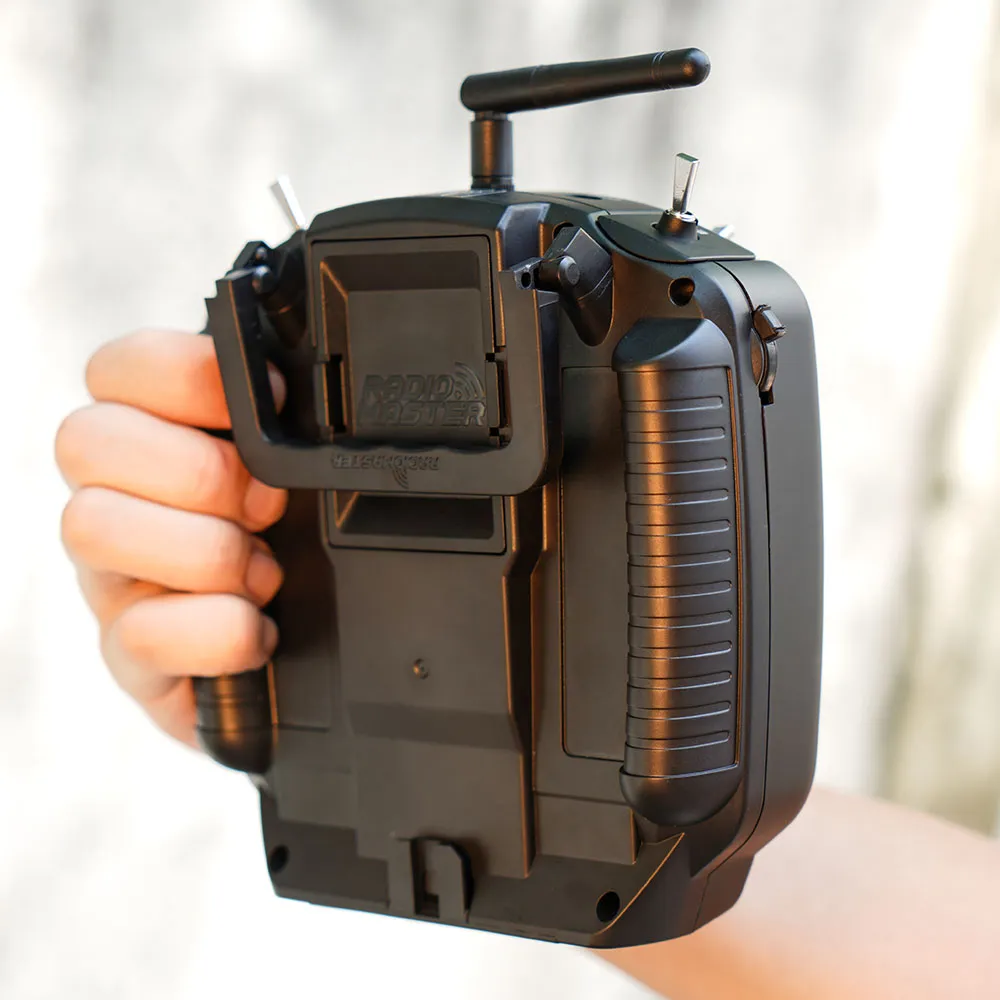

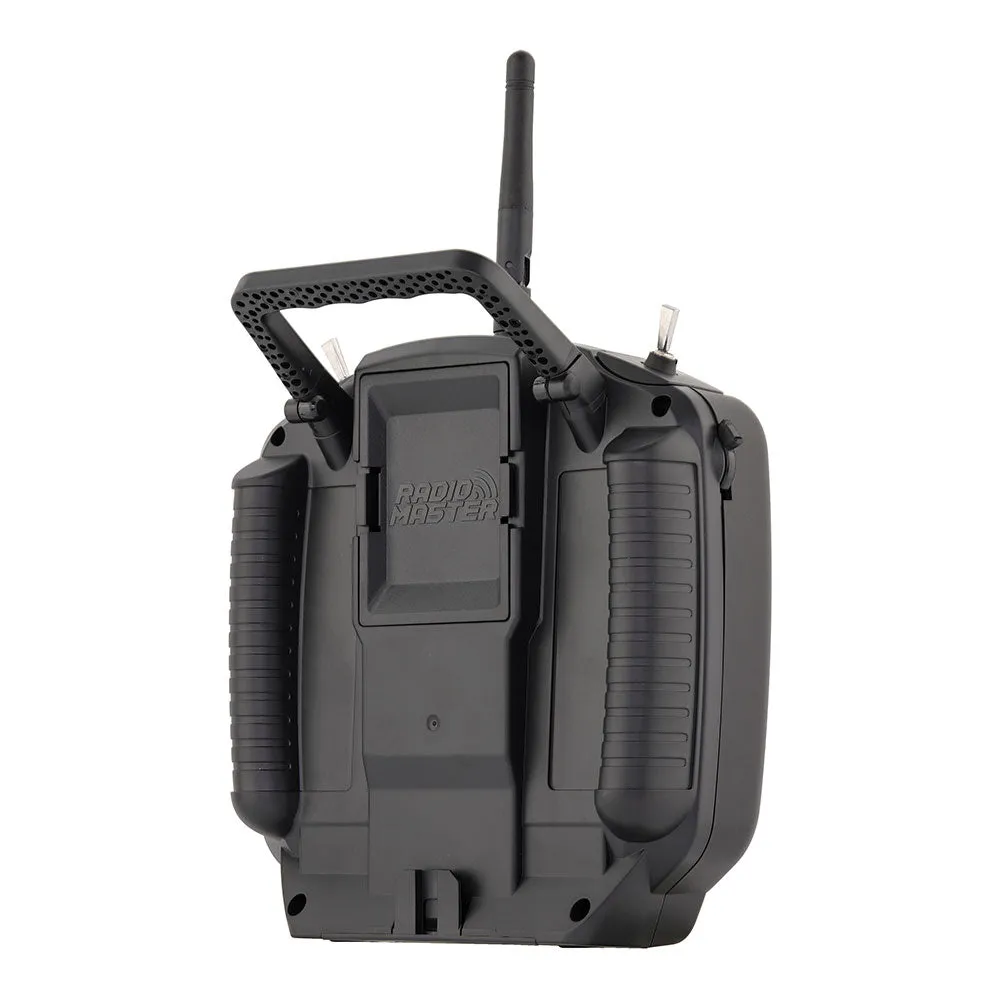

4. **Comfortable Grip Design**: The rear case of the transmitter has been updated with comfortable grips, enhancing the ergonomics for extended use.

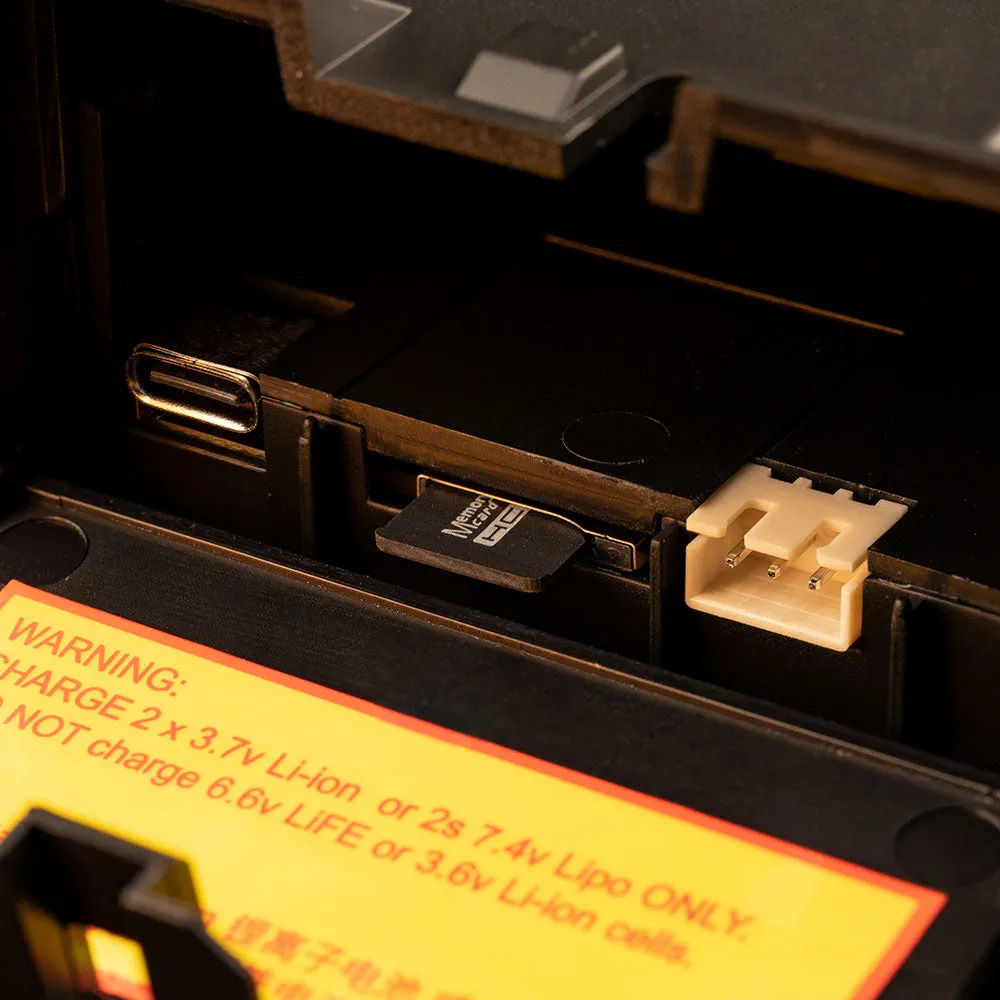

5. **Improved Charging**: Features improved USB-C QC 3.0 charging, ensuring fast and efficient charging of the transmitter.

6. **Slider Grip Enhancement**: The S1/S2 slider grip has been improved for better handling and control.

7. **Multiple Modes**: Provides M1 and M2 modes, allowing pilots to switch between different configurations easily.

8. **Included SD Card**: Comes with an SD card included, making it convenient to store and transfer firmware updates and model configurations.

**Specifications:**

– **Upgrade Method**: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
– **Radio Firmware**: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)
– **Working Current**: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)
– **External Module Compatibility**: JR/FrSKY/Crossfire compatible
– **Channels**: Up to 16 (depending on the receiver)
– **Display**: 128*64 Monochrome LCD display
– **RF Chip**: ExpressLRS (ELRS) / CC2500
– **Gimbal**: High precision hall gimbals
– **Frequency**: 2.400GHz-2.480GHz
– **Voltage Range**: 6.6-8.4v DC
– **USB Charging**: QC3 USB-C
– **Size**: 170*159*108mm
– **SD Card**: Included
– **Weight**: 363g

Upgrade your RC flying experience with the RadioMaster TX12 MKII transmitter. With its advanced features and reliable performance, it’s the perfect choice for pilots who demand the best in control and functionality.
