Skydroid H16 Pro HD Video Transmission System

Description

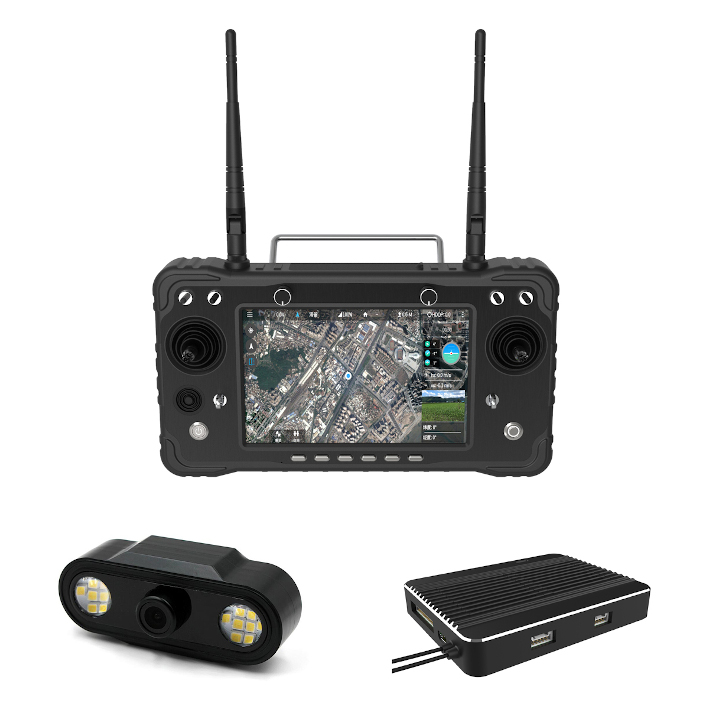

Skydroid H16 Pro HD Video Transmission System

Skydroid H16 Pro is an all-in-one drone remote control solution for long-range HD video transmission, which can realize video, data transmission and radio control. Featuring low latency, good anti-interference performance, and a long transmission range. For surprises, never stops! The H16 Pro video transmission system uses the newest surging processor, equipped with an Android embedded system and advanced SDR technology, also with a super protocol stack to make the image clearer, lower latency, longer distance transmission, and stronger anti-interference. Applied for drones, aerial photography, FPV security, fire protection, power, mapping, border control, Robots, industrial controlled equipment, etc.

Skydroid H16 Pro All-in-one Portable Ground Control Station supports rich interfaces such as HDMI, RJ45, sensor interface, dual serial port pass-through transmission, SBUS, IP67 design, based on waterproof, dust free and drop-resistant materials and structure to ensure its great experience and durability.

Follow us World Drone Market on YouTube to view more videos about Skydroid H16 Pro.

Skydroid H16 Pro Features

• 7-inch HD highlight display, the sun is still clearly the real-time information display, operators can use it in full sunlight,1080p high-definition digital video transmission.
• Supports rich interfaces such as HDMI, network port, sensor interface, dual serial port transparent transmission, sbus, etc. And supports more cameras, pan-tilts, pods and other video equipment. Development kit SDK, supports video suspension, supports the mainstream flight control ground station, supports QGC RTSP video streaming and wireless sharing.
• The use of IP67 grade waterproof, dust-proof and drop-proof materials and structure ensure not only good hand feeling, but also durability.
• High-energy density lithium-ion battery, support for 18w fast charge, full power can work for 8–15 hours, always thinking of wilderness survival equipment reliability give you no care.
• Skydroid H16 Pro digital data image control three-in-one remote controller can set Chinese, English, Korean and other languages.
• It is compatible with most drones, which can be used for mapping, surveillance and power line inspection, police patrol, search and rescue etc.

H16 series includes two versions

Skydroid H16 Remote Control: With MIPI camera, with HDMI input, 10KM transmission HD version.
Skydroid H16 Pro Remote Control: With MIPI camera, with HDMI input, 20KM transmission HD version.

Specifications

Brand Name: Skydroid
Item Name: H16 Pro Transmitter Set
Number of channels: 16 channels
Frequency: 2.400-2.483GHz
Working voltage: 4.2V
Working Current: 100mA
RF Power: 20DB@CE/23DB@FCC
Modulation: New FHSS
Weight: 1034g
Firmware: APP online
Dimension: 272 * 183 * 94 mm
Duration: 8-15 hours
Battery Capacitor: 20000mA
Charge Port: Type-C
Application: Helicopter, Fixed wing, Copter, Car, boats, Robots

For product installation and configuration, please check Skydroid H16 series User Manual
