Description

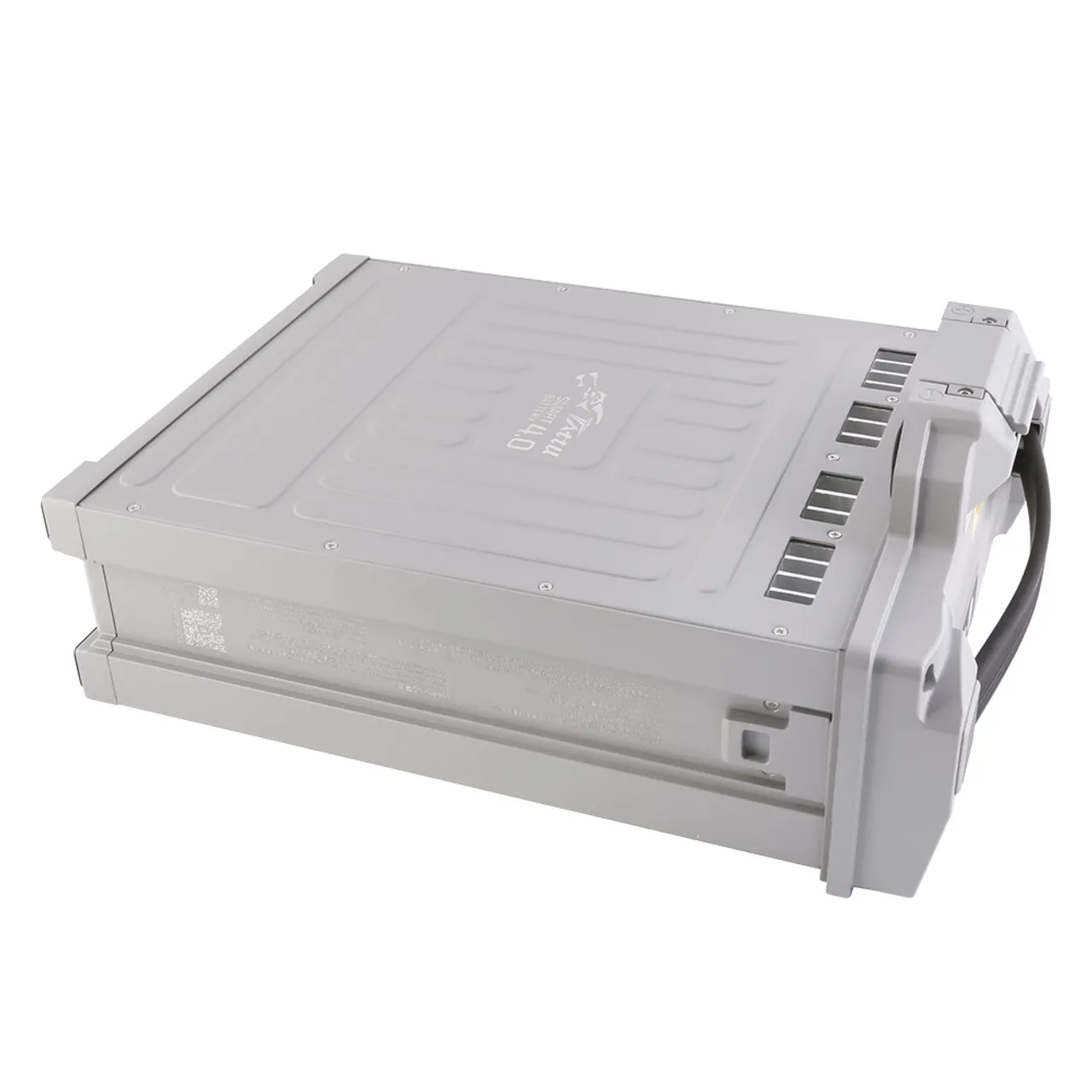

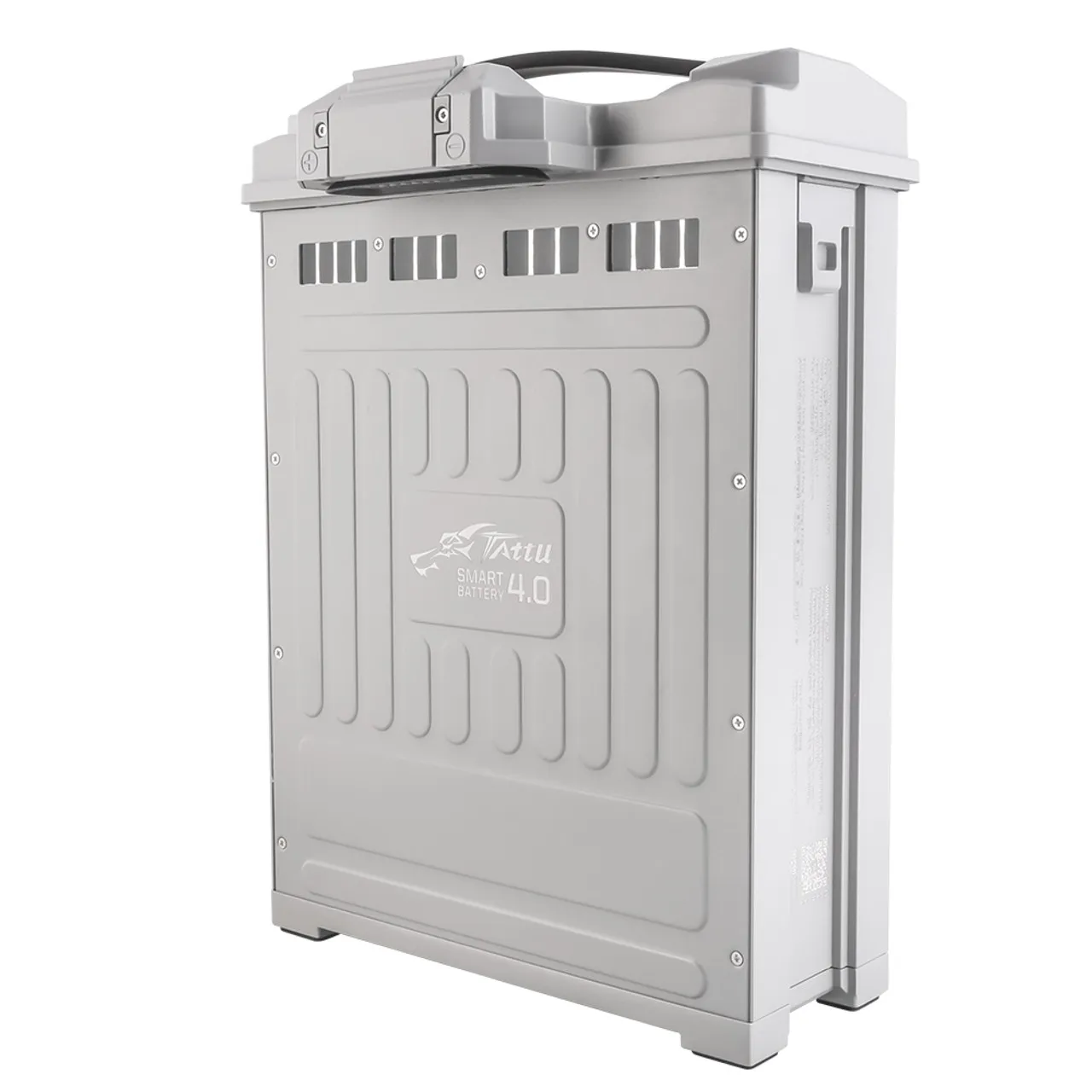

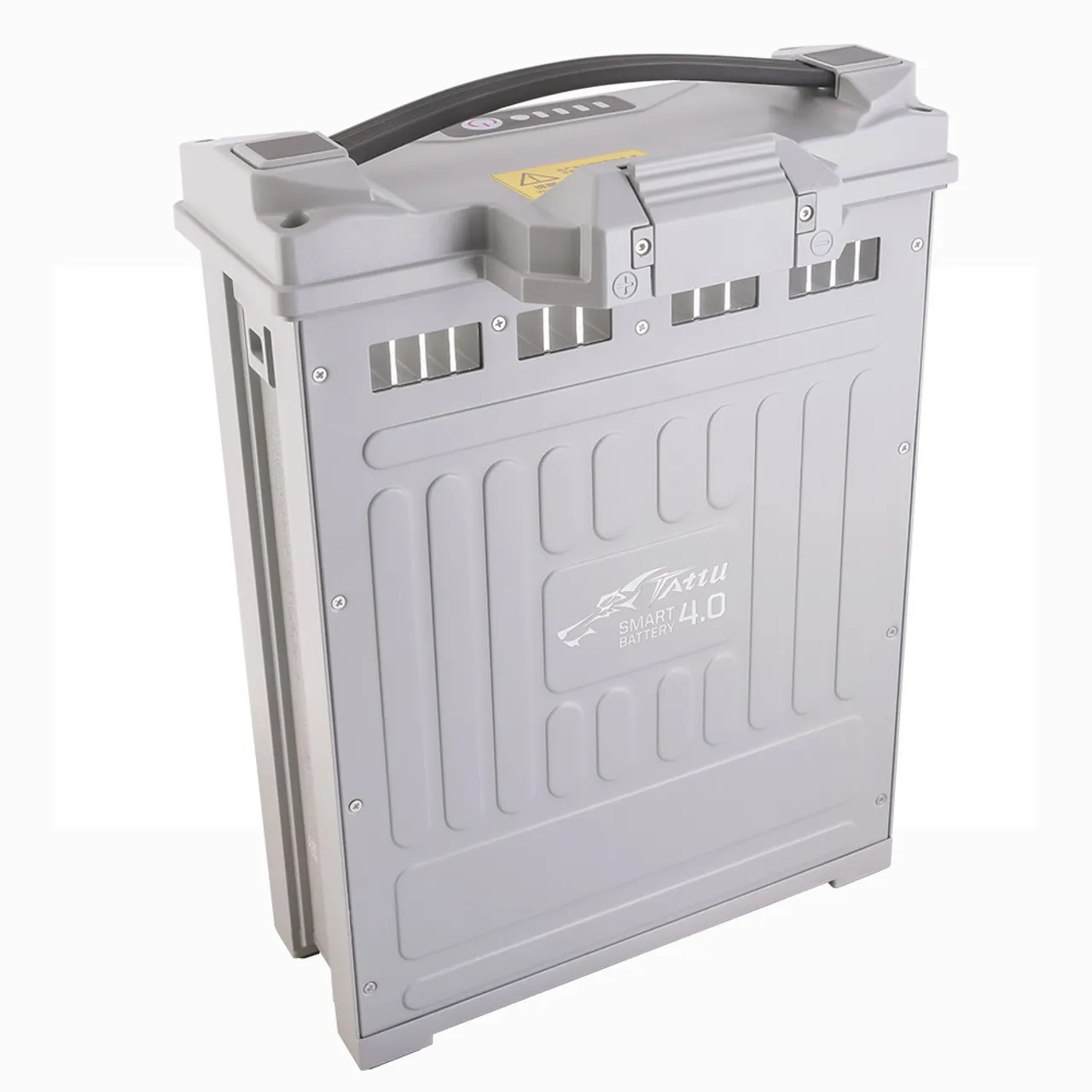

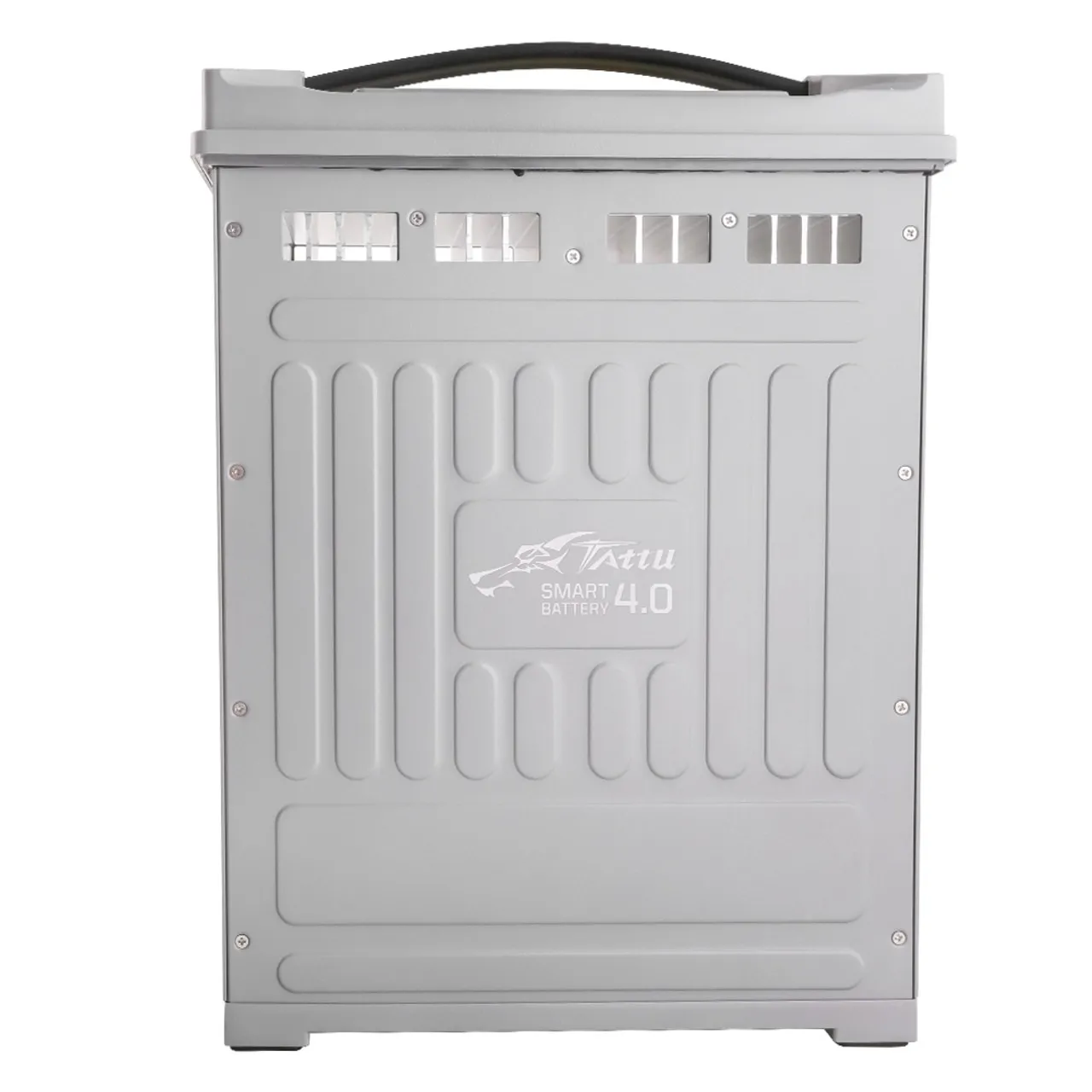

Tattu 4.0 30000mah
The Tattu Tattu 4.0 is a new generation smart drone battery with optimized plug-and-play installation, adopting high-energy-density cells and an advanced BMS. It is specially designed for heavy-payload drones and 30L or less agricultural drones, supporting a max 180A continuous discharge current and 5C fast charging with the TA9000Pro Charger.
Integrates a high-precision BMS with integrated Bluetooth, and provides comprehensive safety features, including Drone CAN protocol accessible, Bluetooth connection function, SOC indication, fault self-diagnosis function, self-balancing, smart storage, Log Storage Function, Cycle statistics function, Software Upgrade Function, automatic charging current adjustment and protection function, ensuring a safe flight every time. The on/off function can prevent sparking when the battery is turned off before connecting any device.
The structure has been comprehensively upgraded to enhance heat dissipation, ensuring efficient cooling. The TATTU 4.0 version eliminates the need for a USB communication, instead integrating a Bluetooth module into BMS. This enables real-time monitoring of battery status and data, providing a seamless human-battery interaction experience. Additionally, the handles have been optimized to improve the overall design and aesthetics, enhancing the sense of style. Furthermore, the upgraded structure effectively reduces the risk of corrosion-related short-circuits caused by exposure to humidity or liquids, thereby enhancing safety and reliability.
By connecting to the Tattu Bluetooth App, users can perform battery software upgrades, and access real-time battery information and historical logs easily.
Specifications:
- Minimum Capacity: 30000mAh
- Configuration: 14S1P
- Nominal Voltage: 53.2V
- Power: 1596 Wh
- Net Weight(±350g): 11400g
- Dimensions: 333mm Length x 237 mm Width x 92.5mm Height
- Discharge Plug: Molex-46562-2657
- Max Continuous Discharge Current: 270A
- Peak Discharge Current: 350A ≤ 3S
- Operation Temperature: -20 – 60℃
- Charge Temperature: 5~10℃ ≤1C, 10~20℃≤1.5C, 20~60℃≤5C
- Discharge Temperature: -20~0℃≤ 0.2C, 0-10℃≤0.5C, 10~60℃≤9C
