Description
Features
- Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.

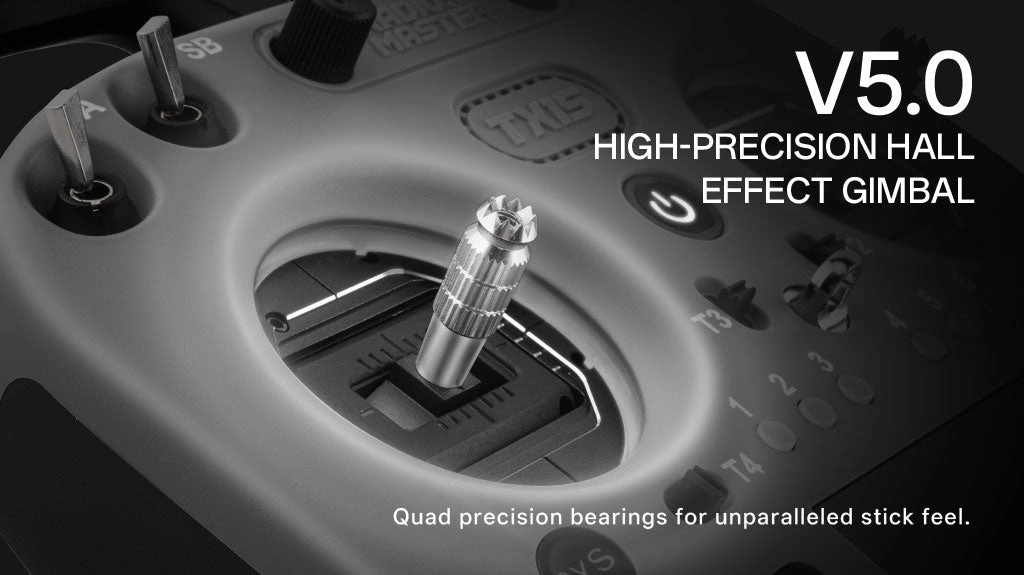

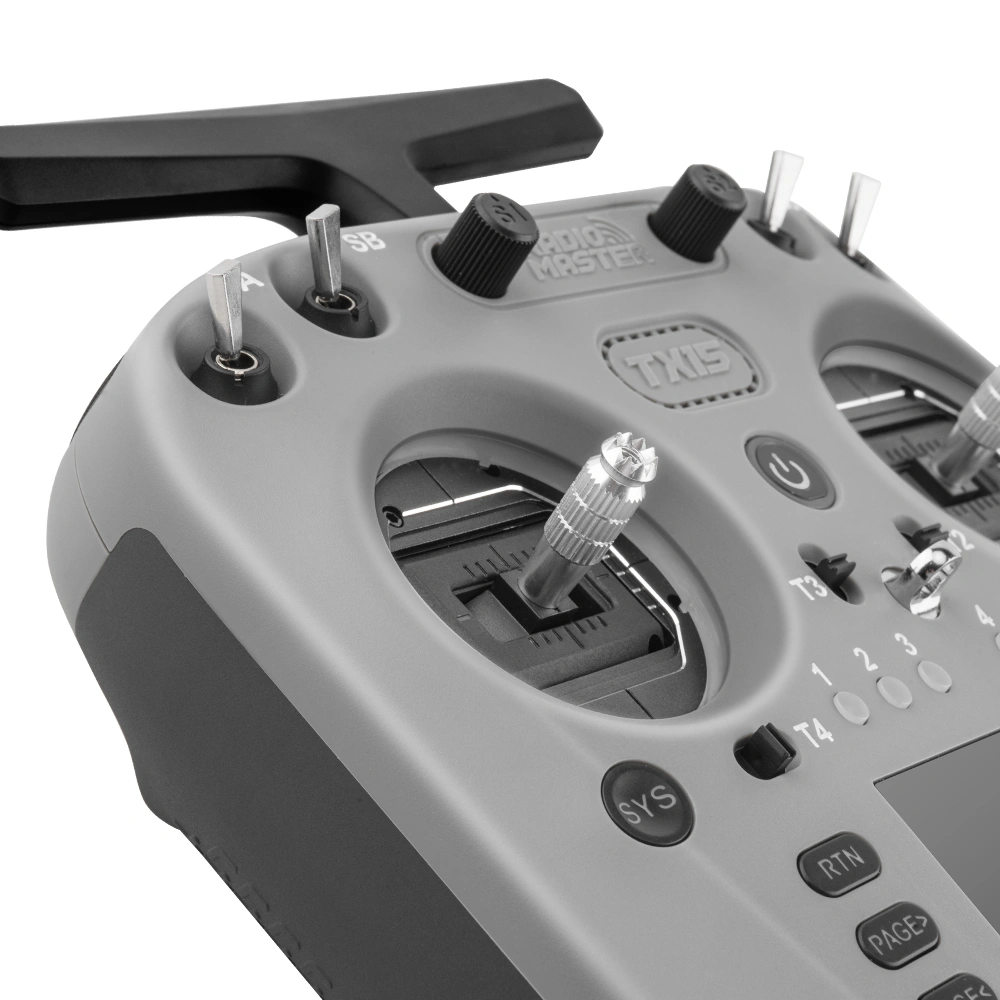

- Precision Gimbals: V5.0 Hall sensor gimbals
- Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit: Maximizes battery efficiency and optimizes runtime.
- Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

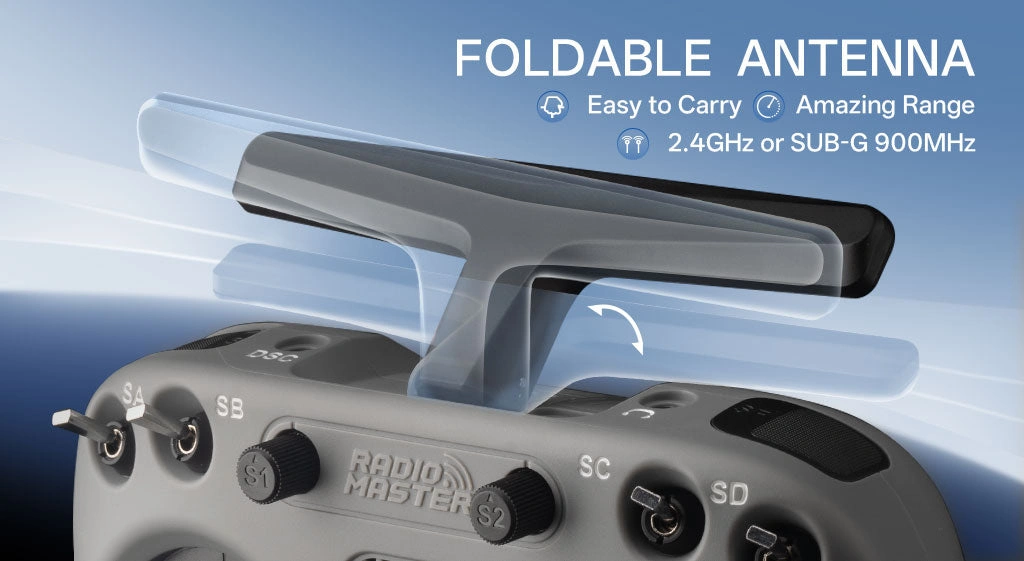

- Foldable Antenna: Compact and easy to store without compromising signal strength.

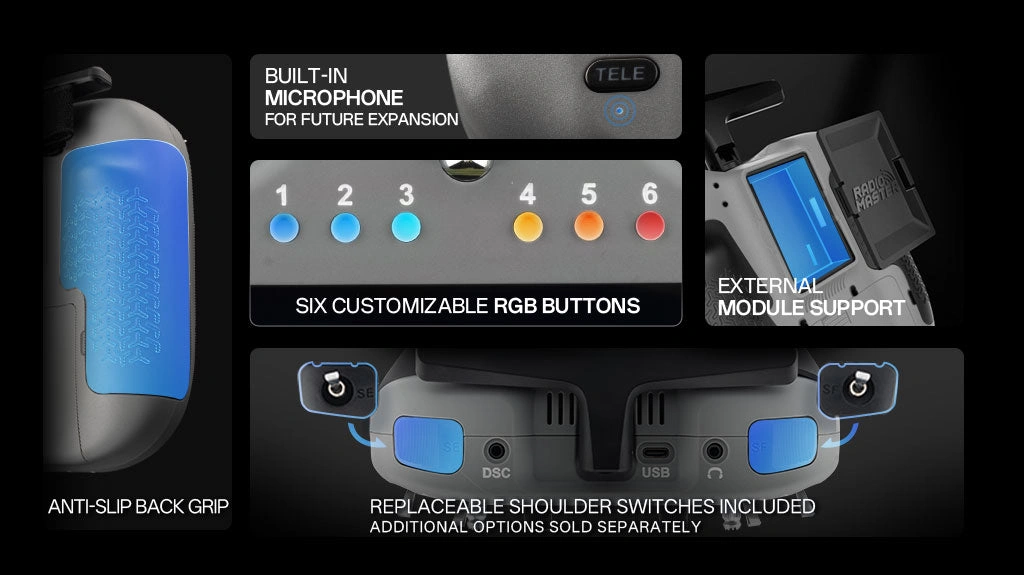

- Built-in Microphone: For future feature expansion.
- Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
- Storage: Built-in flash memory with external SD card support.
- Interchangeable Shoulder Switches: Customize your controls to match your style.
- Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow / Hot Pink

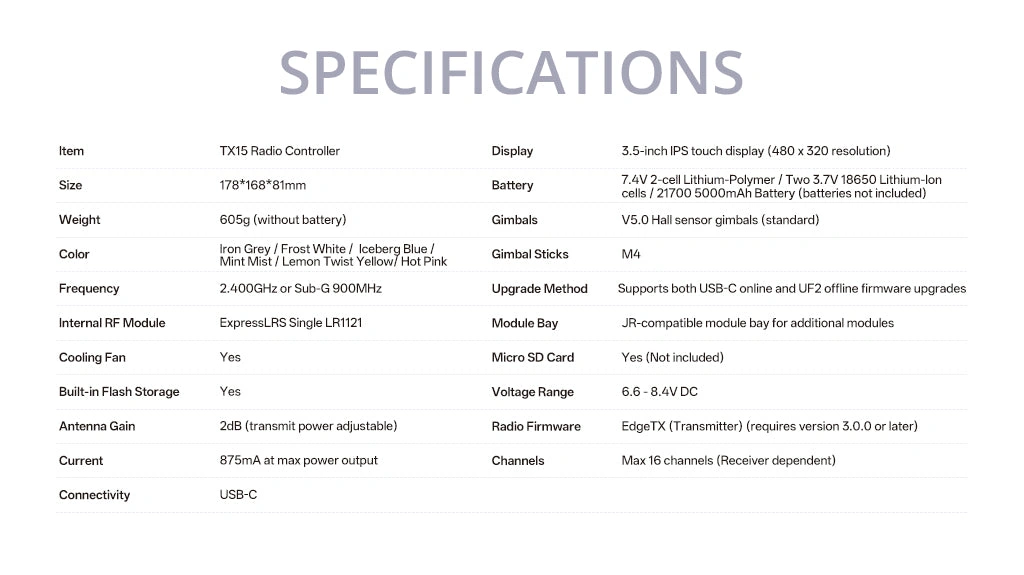

Specifications

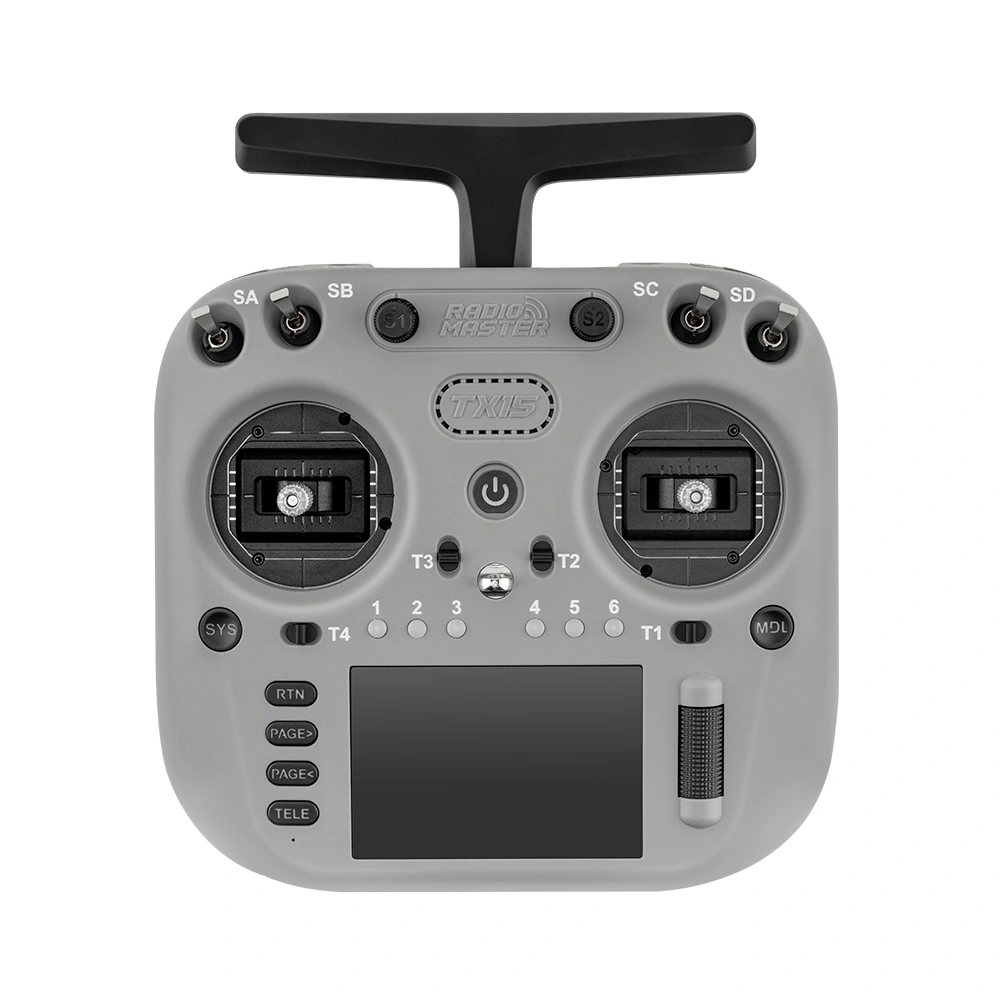

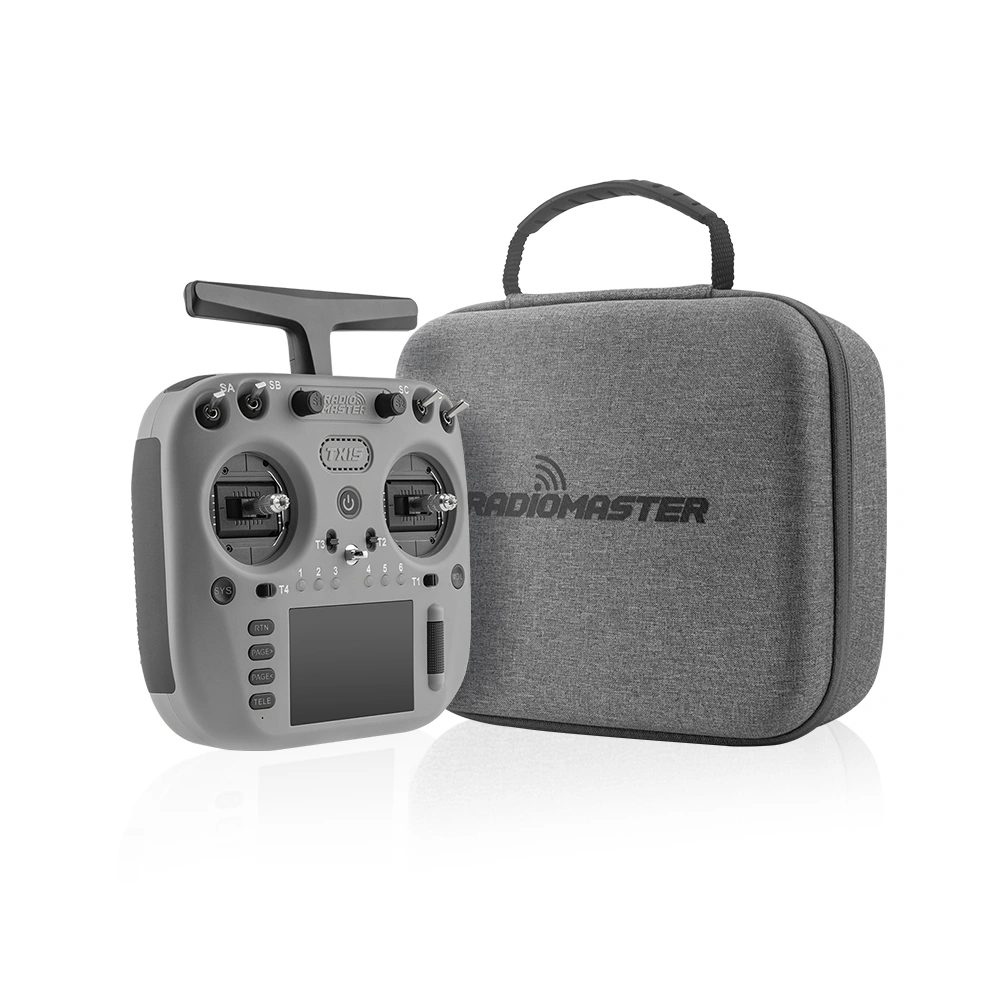

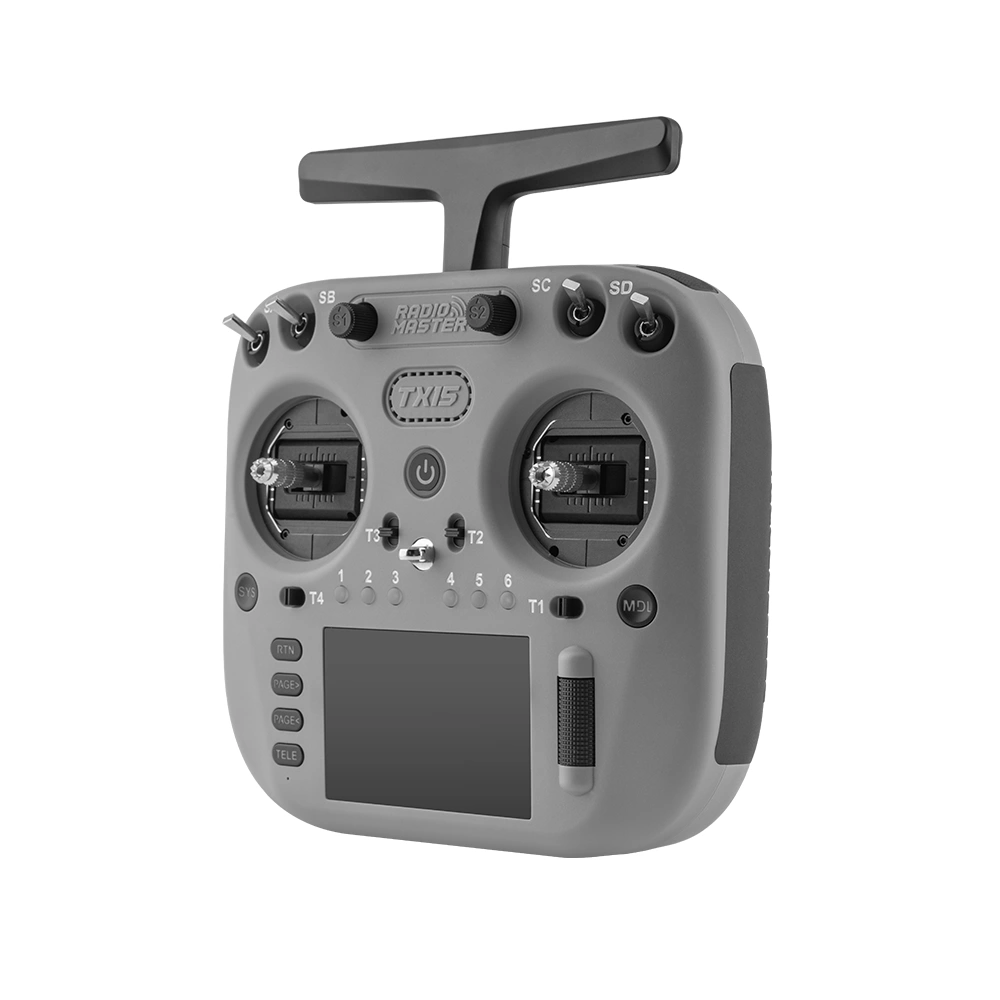

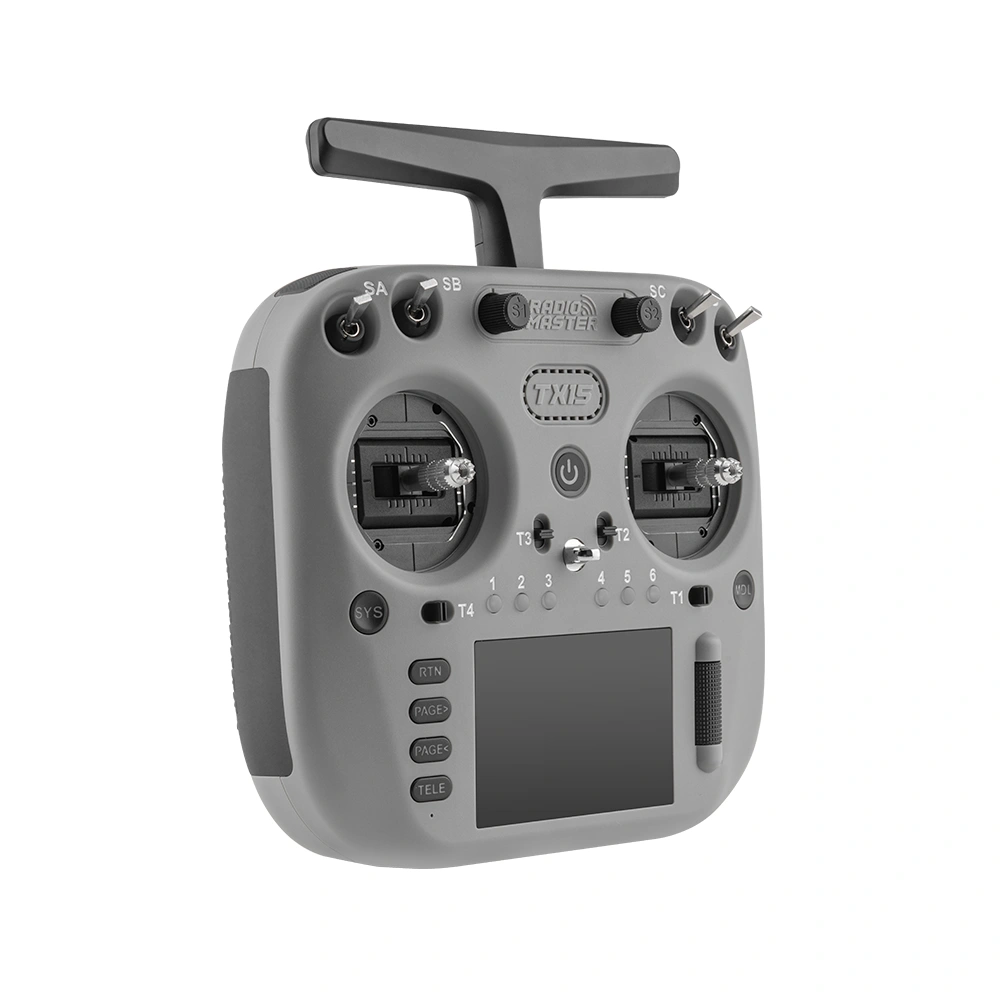

- Item: TX15 Radio Controller
- Size: 178*168*81mm
- Weight: 605g (without battery)
- Frequency: 2.400GHz OR Sub-G 900MHz
- Internal RF: ELRS 2.4GHz / Sub-G 900MHz
- Supported Protocols: Express-LRS
- Cooling Fan: Yes
- Transmitter Module: Built-in ELRS
- Built-in Flash: Yes
- Built-in Microphone: Yes (Future expansion)
- Built-in Motion Sensor: Yes (ICM-42607-C)
- MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
- Antenna Gain: 2dB (transmit power adjustable)
- Current: 875mA at max power output
- Voltage Range: 6.6 – 8.4V DC
- Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
- Module Firmware: ExpressLRS
- Channels: Max 16 channels (Receiver dependent)
- Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
- Connectivity: USB-C
- Gimbals: V5.0 Hall sensor gimbals (standard)
- Gimbal Sticks: M4
- Upgrade Method: USB-C (UF2)
- Module Bay: JR-compatible module bay for additional modules
